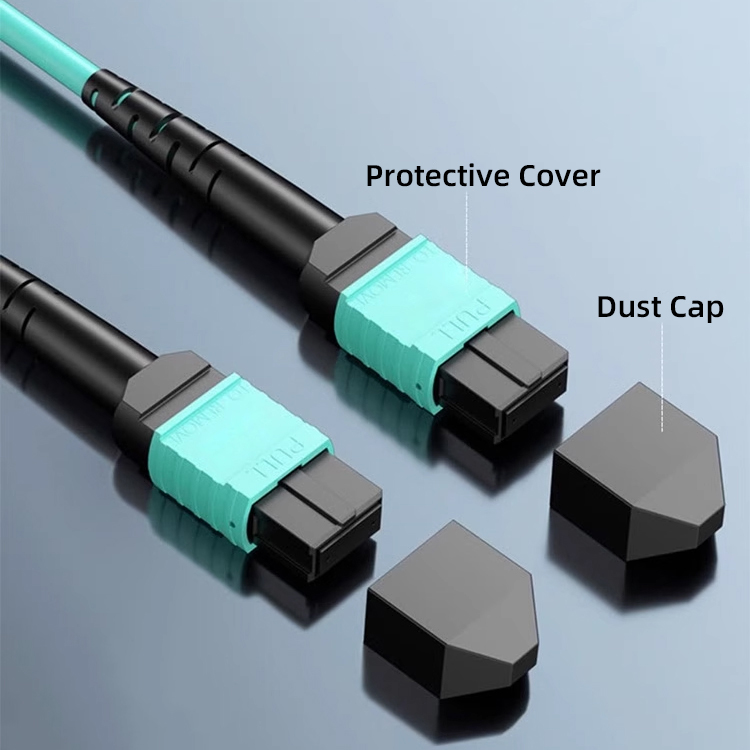

MPO/UPC-MPO/UPC MM 12F 12 Core OM4 3.0mm LSZHFiber Optic Patch Cord
12-fiber MPO/UPC OM4 multimode patch cord with LSZH jacket. Optimized for 100G/400G short-reach data center links with extended bandwidth over OM3.
Technical Specifications
Engineered For Performance
Extended Reach Over OM3
OM4 fiber provides 4700 MHz·km effective modal bandwidth at 850nm — supporting 100G SR4 links up to 150m, 50% farther than OM3.
100G/400G Optimized
Designed for IEEE 802.3bs 400GBASE-SR16 and 100GBASE-SR4 parallel optics, delivering high-bandwidth connectivity for next-generation data centers.
Factory Terminated & Tested
100% end-face inspection and 3D interferometric testing on every fiber ensures consistent low-loss performance right out of the box.
LSZH Safety Jacket
Erika violet LSZH jacket meets IEC 60332-1 standards. Low smoke, zero halogen construction is ideal for enclosed spaces and plenum environments.
Typical Applications
100G/400G Data Centers
High-speed spine-leaf fabric interconnects using QSFP28 and QSFP-DD parallel optics transceivers over short-reach multimode links.
SAN & HPC Clusters
Storage area networks and high-performance computing clusters demanding ultra-low-latency, high-bandwidth fiber connections.
Enterprise Campus Backbone
Building-to-building multimode backbone links in campus networks where OM4 extended reach reduces the need for single-mode upgrades.
Interested in this MPO/UPC OM4 12F Patch Cord?
Tell us your quantity, cable length, and any custom requirements. Our engineering team will respond with a detailed quote within 24 hours.
