Fiber Optic LoopbackTesting Simplified
Loopback modules for network testing and diagnostics — LC, SC, FC, MPO types in single mode and multimode.
Overview
A fiber optic loopback module routes transmitted light directly back to the receiver port of the same device, creating a closed loop for testing transceivers, line cards, switches, and network equipment without requiring a remote far-end connection. Loopback testing is essential during equipment installation, commissioning, burn-in, and troubleshooting to verify that optical interfaces are functioning correctly.
TTI Fiber manufactures fiber optic loopback modules in all standard connector types — LC, SC, FC, ST, and MPO — in both single-mode and multimode versions. Our single-mode loopbacks use precision-bent fiber with a controlled bend radius to maintain low insertion loss (typically ≤ 0.5 dB). Multimode loopbacks use encapsulated fiber loops in a compact housing. MPO loopback modules support 8-fiber and 12-fiber configurations for testing 40G and 100G parallel optics.
Every loopback is individually tested and marked with insertion loss and return loss values. The compact, plug-in design requires no external power and can be quickly inserted into any standard adapter panel or equipment port. As an ISO 9001 certified manufacturer, TTI Fiber offers custom connector types, attenuation values, and OEM packaging for test equipment manufacturers, network operators, and system integrators.
3 products available
Why Choose TTI Fiber Fiber Optic Loopback
All Major Connector Types
LC, SC, FC, ST, and MPO loopbacks in both UPC and APC variants. Single-mode and multimode versions for comprehensive equipment testing.
Low Insertion Loss
Precision fiber bending technology delivers typical insertion loss ≤ 0.5 dB, ensuring accurate and reliable loopback test results.
Compact Plug-In Design
No external power required. Simply plug into the equipment port for instant loopback testing during installation and troubleshooting.

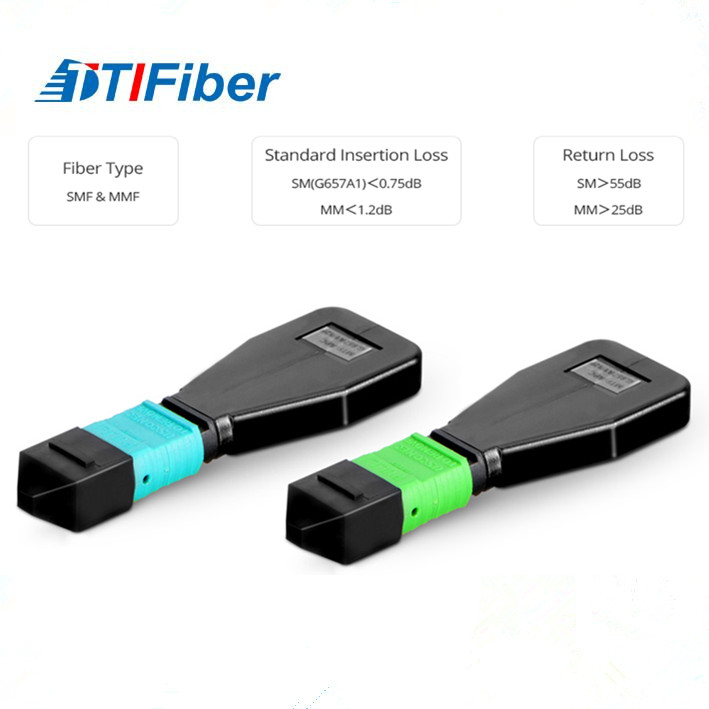

MPO 8/12 Fiber Support
MPO loopback modules in 8-fiber and 12-fiber configurations for testing 40G SR4, 100G SR4, and other parallel optics transceivers.
Frequently Asked Questions
A loopback module is used to test optical transceivers, line cards, and network equipment by routing the transmitted signal directly back to the receiver. This verifies that the optical interface is functioning correctly without needing a remote connection or a second device.
No. Single-mode and multimode loopbacks use different fiber types (9/125 µm vs 50/125 µm) and are not interchangeable. Using the wrong type will produce unreliable test results or excessive loss.
A patch cord connects two separate ports or devices. A loopback connects the TX and RX of the same port, creating a closed loop for self-testing. The loopback module is a compact, single-ended device, not a cable with two connectors.
Yes. We can manufacture loopback modules with built-in attenuation (e.g., 5 dB, 10 dB) for testing receiver sensitivity or simulating specific link loss conditions. Contact our sales team for custom attenuated loopbacks.
