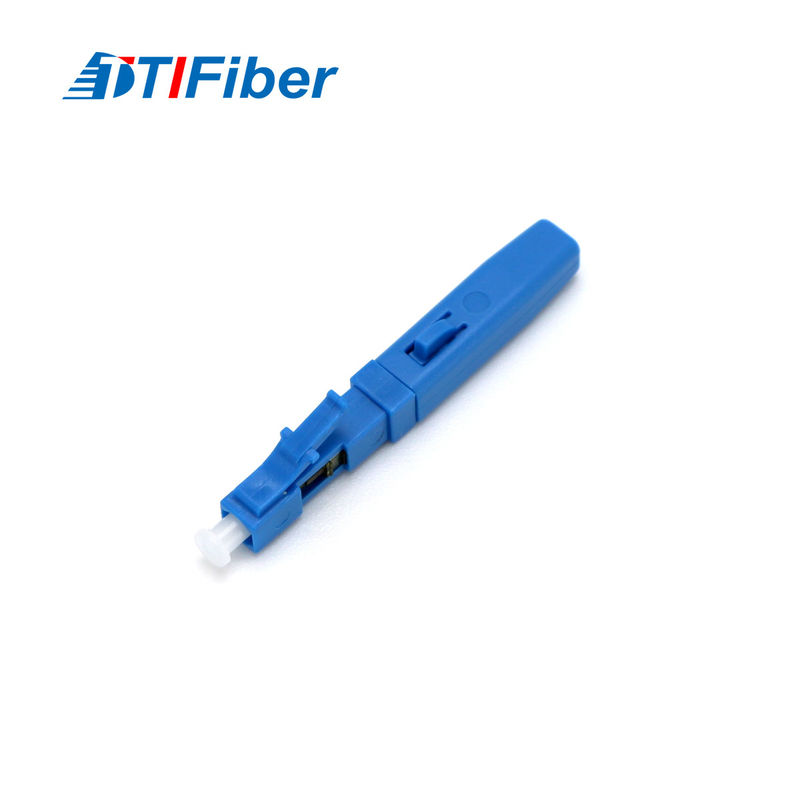

LCFiber Optic Connector — UPC, APC, Single Mode & Multimode
LC fiber optic connector with 1.25mm zirconia ferrule and push-pull latching mechanism. Available in UPC and APC polish types for single mode and multimode applications. Compact small form factor design for high-density patching environments.
Technical Specifications
Engineered For Performance
Compact Small Form Factor
1.25mm ferrule design allows twice the port density of SC connectors, making LC the standard choice for high-density data center and telecom patching environments.
Ultra-Low Insertion Loss
Precision-polished zirconia ceramic ferrule delivers typical insertion loss of 0.2dB or less, ensuring minimal signal degradation across long fiber links.
Push-Pull Latching Mechanism
Secure push-pull latch enables quick, tool-free connections and disconnections even in tight spaces, reducing installation time and preventing accidental disconnection.
Dual Polish Options
Available in UPC (≥50dB return loss) and APC (≥60dB return loss) polish types, supporting both standard data networking and demanding analog/CATV applications.
Typical Applications
Data Center Patching
High-density LC duplex connections for 10G, 25G, and 100G SFP/QSFP transceiver modules in top-of-rack and leaf-spine architectures.
Telecom Access Networks
LC connectors in OLT and ONU equipment for GPON/XGS-PON deployments, providing reliable connections at central offices and subscriber endpoints.
Enterprise LAN Cabling
Structured cabling backbone and horizontal runs in office buildings, hospitals, and campus networks requiring compact, high-performance fiber connectivity.
Interested in this LC Connector?
Tell us your quantity, cable length, and any custom requirements. Our engineering team will respond with a detailed quote within 24 hours.
